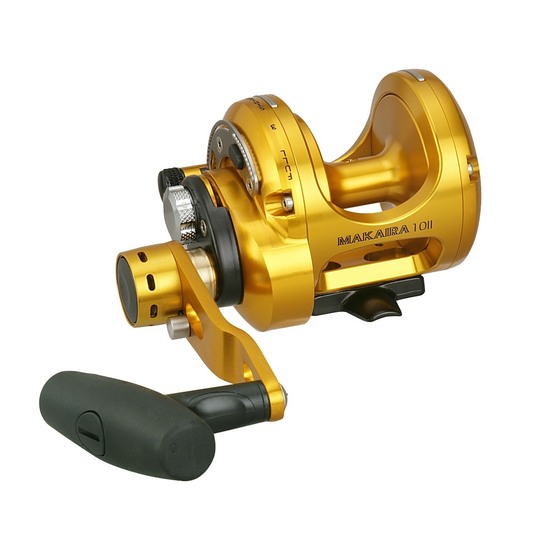

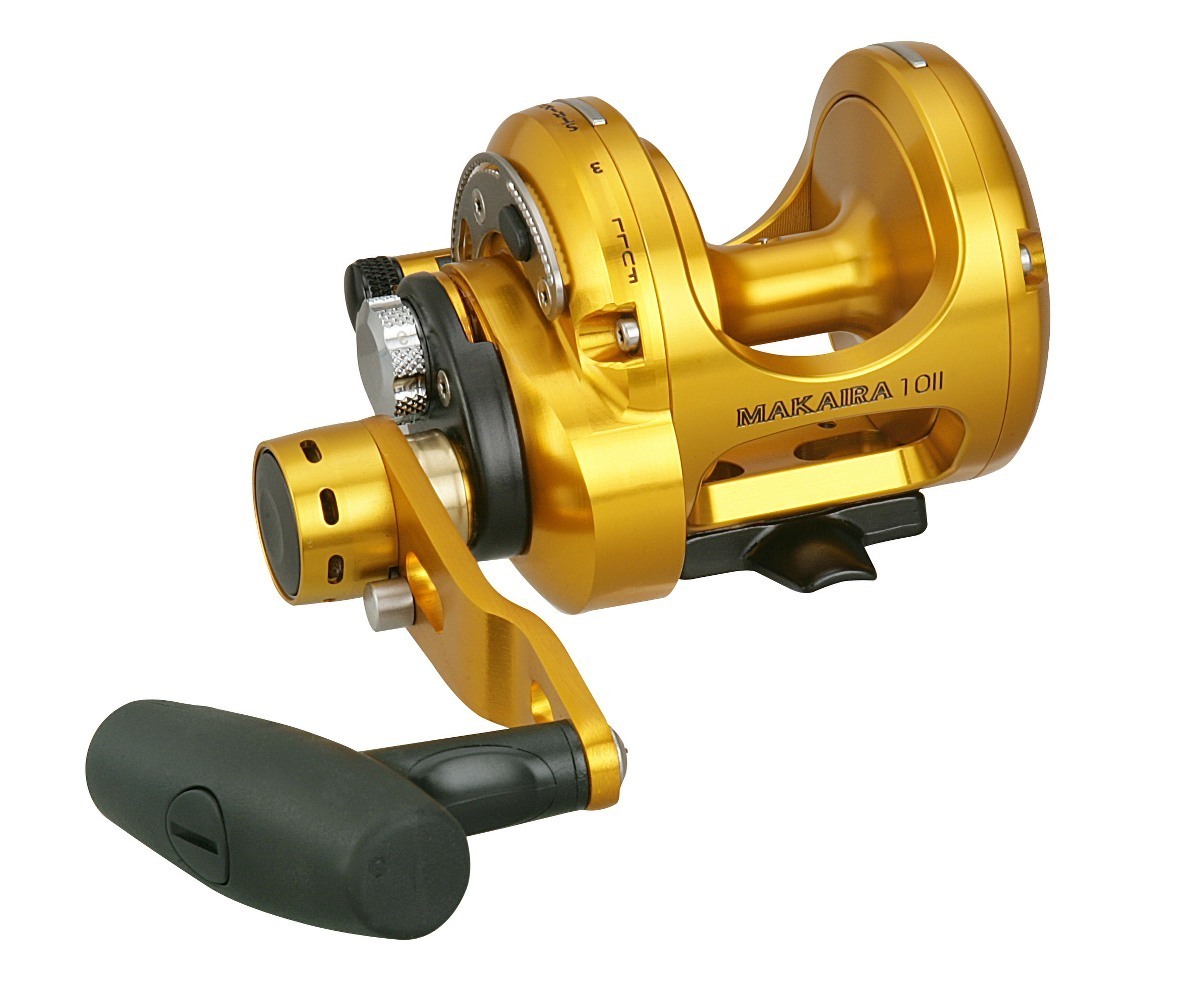

Okuma Makaira Lever Drag

Built on Okuma’s 4D concept – Design, Drive, Drag & Durability, the Makaira series of two-speed reels reinvent the offshore reel, thanks to the combined efforts of Okuma’s multi-national design team, in cooperation with Tiburon Engineering.

Advanced, unique and with numerous patents to its credit Makaira provides excellence in every aspect of design, construction and performance, in sizes to suit all game fishing applications.

● 6061-T6 machined aluminum frame with forged side plates.
● 17-4 grade stainless steel gearing.
● Helical cut gears for increased torque, smoothness and improved gear meshing.
● Makaira reels all feature two-speed gearing systems.
● Gold anodized two-speed gear shifter housing.
● Cold forged, Type-II anodized, machined aluminum spool.
● CRC: Corrosion Resistant Coating process.
● Patented spool pin system for use with braided or mono lines.
● Carbonite Dual Force drag system featuring Cal’s universal drag grease.
● Custom designed thrust bearing: Alleviates side load on heavy drag settings.
● 4-pcs ABEC-5 precision Sapporo stainless steel ball bearings.
● MK-80WII features 6-pcs of Sapporo ball bearings.
● Double-dog, proprietary silent anti-reverse system.
● Ratcheting drag lever and pre-set knob for precise drag setting.
● Patented T-Bar handle with Easy Roll graphite insert on all models.
● Heavy duty stainless steel ratcheting clicker system.
● Heavy duty, 17-4 grade stainless steel drive and spool shafts.
● Type-II gold anodized frame, sideplates, spool, drag lever and handle.
● Lug and plug system on all open top reel models.
● Machined thumb rest on rear cross bar for improved ergonomics.
● Forged aluminum full hard anodized reel foot and reel clamp.
● Machine-etched marlin logo on left side plate.
● Precision placement of drain holes maximises water removal from reel.
● Special screw ports around side plate screws reduces water / corrosion build-up.

Please Note – Open top frame design on MK-10II, 15II, 20II, and 50II.

Specs listed below, including Max Strike Drag with Freespool and Max Full with Freespool.



Model	Gear Ratio	Weight	Max Strike	Max Full	Mono Capacity – LBS/YDS	Capacity – mm/Metres
MK-10II	4.7:1 & 2.1:1	740g	12.3kg	15.4kg	15/460, 20/380, 25/280	0.37/420, 0.42/350, 0.48/260
MK-15II	4.7:1 & 2.1:1	780g	12.3kg	15.4kg	20/550, 25/410, 30/310	0.42/500, 0.48/370, 0.55/280
MK-20II	3.8:1 & 1.7:1	1298g	16.8kg	25kg	25/870, 30/660 40/530	0.48/800, 0.55/600, 0.60/480
MK-30II	3.8:1 & 1.7:1	1417g	16.8kg	25kg	30/850, 40/700, 50/550	0.55/700, 0.60/640, 0.70/500
MK-50II	3.2:1 & 1.3:1	1741g	27.2kg	39kg	30/1000, 50/650, 80/400	0.55/910, 0.70/590, 0.90/360
MK-50WII	3.2:1 & 1.3:1	1843g	27.2kg	39kg	50/900, 60/780, 80/560	0.70/820, 0.75/710, 0.90/510
MK-80WII	3.1:1 & 1.2:1	3289g	32.1kg	45.4kg	80/1000, 100/850, 130/660	0.90/910, 1.00/770, 1.12/600
MK-130II	2.2:1 & 1.2:1	4750g	34.1kg	45.4kg	80/1570, 100/1270, 130/1000	0.90/1450, 1.00/1170, 1.12/920
